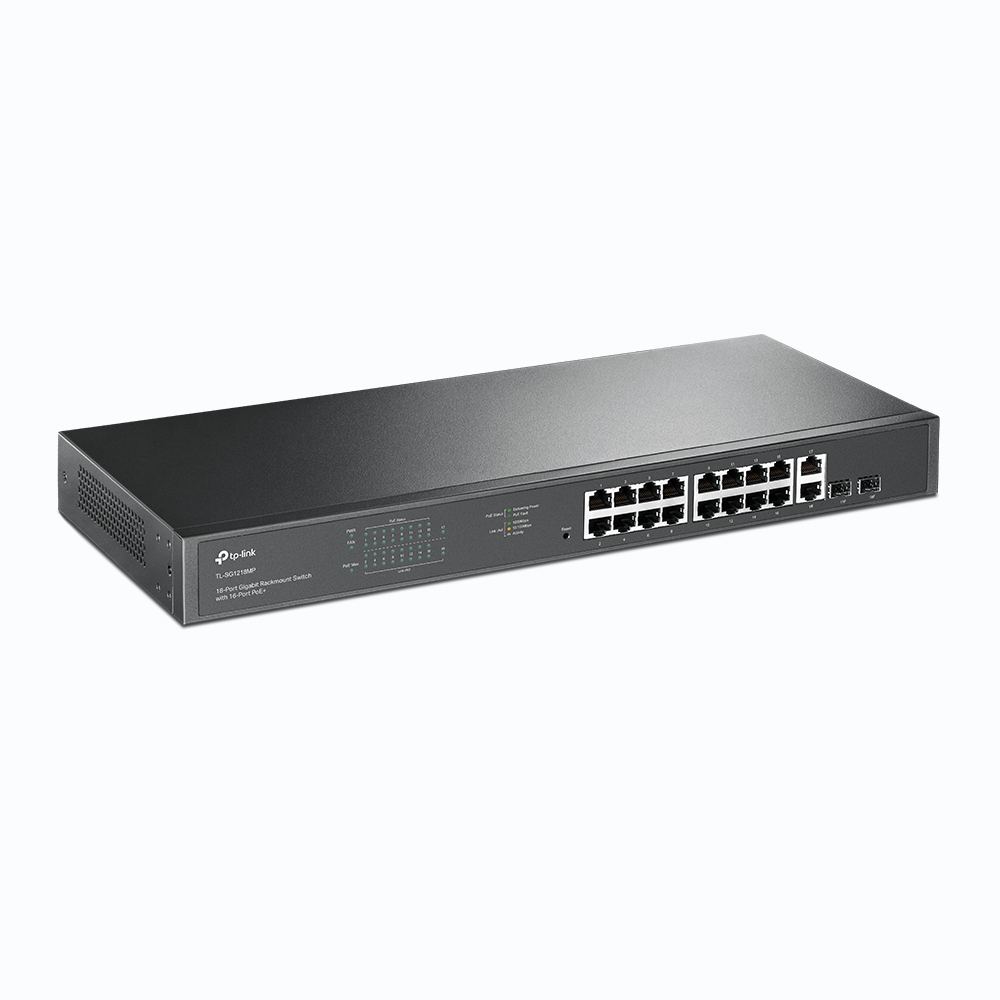

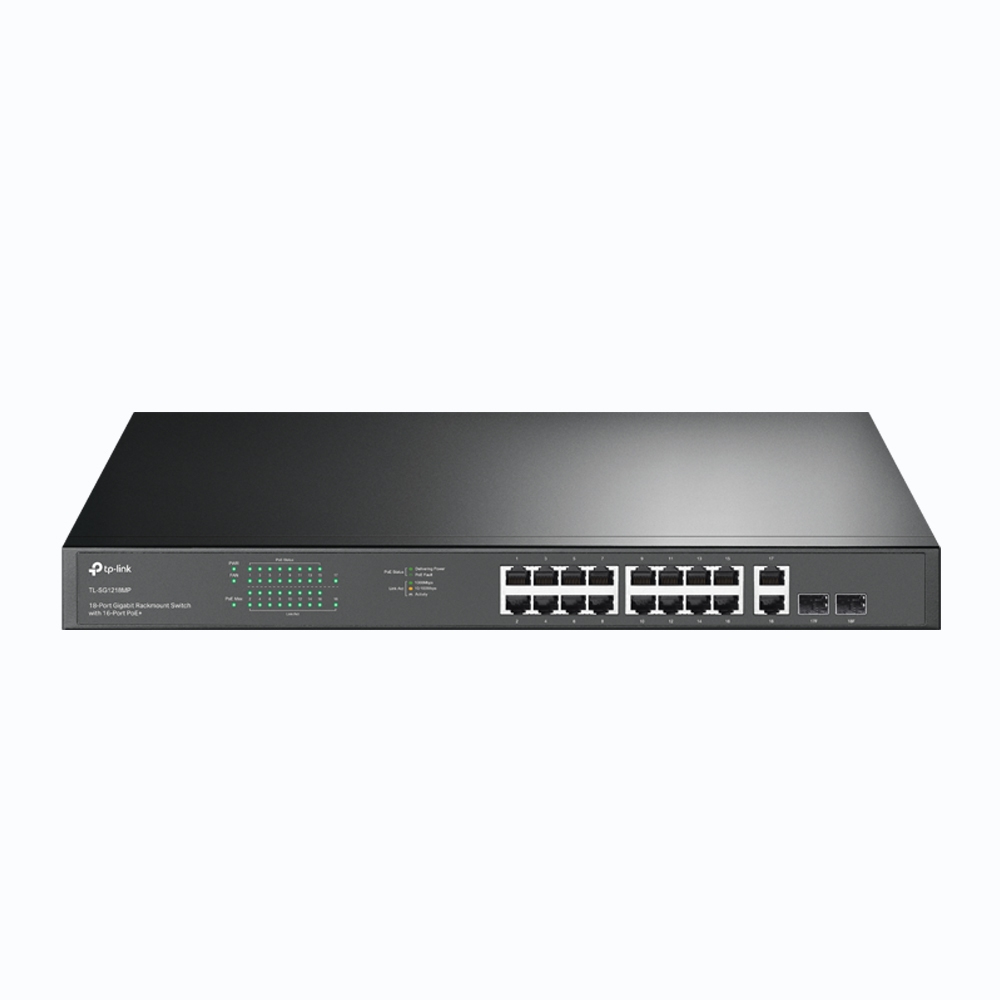

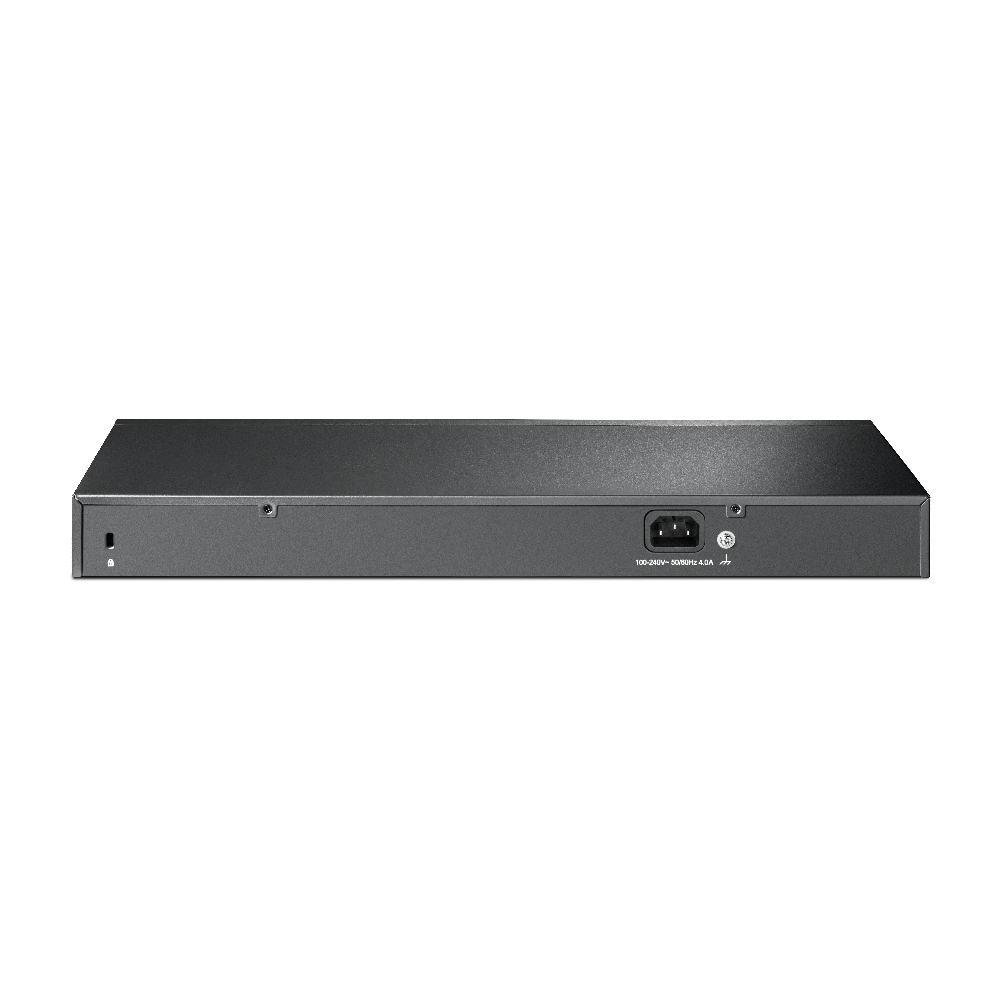

TP-Link 18-Port Gigabit Rackmount Switch with 16 PoE+

Professional High Power 18-Port Gigabit Rackmount Switch with 16-Port PoE+Plug and Play, Multi-Purpose PoE Switch with Powerful PerformanceDedicated 16-Port PoE+ Switch (250 W Budget) for Numerous ApplicationsCompliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.QoS for a Lag-Free ExperienceEnsures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).Intelligent Power Management to Prevent Power OverloadWhen your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports power to ensure high-priority ports power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.Wide Operating Temperature with Good Heat DissipationDurable metal casing and professional heat dissipation design ensure the wide operating temperature (0 50 ) with reliability.Multiple Application ScenariosThe TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Management features
Switch type:	Unmanaged
Quality of Service (QoS) support:
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	18
Basic switching RJ-45 Ethernet ports type:	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity:	18
Combo SFP ports quantity:	2
Network
Networking standards:	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support:
Cable types supported:	Cat3, Cat4, Cat5, Cat5e, Cat6
Flow control support:
Auto MDI/MDI-X:
Ethernet LAN data rates:	10,100,1000 Mbit/s
Auto-negotiation:
Data transmission
MAC address table:	8000 entries
Switching capacity:	36 Gbit/s
Forwarding rate:	26.78 Mpps
Jumbo frames support:
Jumbo frames:	10000
Packet buffer memory:	4.1 MB
Design
Rack mounting:
Form factor:	1U
Product colour:	Black
Housing material:	Metal
LED indicators:
Number of fans:	2 fan(s)
Certification:	CE, FCC, RoHS
Power
Power source:	AC
Power supply included:
AC input voltage:	100 - 240 V
AC input frequency:	50 - 60 Hz
Power consumption (max):	286.64 W
Power over Ethernet (PoE)
Power over Ethernet (PoE):
Power over Ethernet plus (PoE+) ports quantity:	16
Power over Ethernet (PoE) power per port:	30 W
Total Power over Ethernet (PoE) budget:	250 W
Operational conditions
Operating temperature (T-T):	0 - 50 °C
Storage temperature (T-T):	-40 - 70 °C
Operating relative humidity (H-H):	10 - 90%
Storage relative humidity (H-H):	5 - 90%
Heat dissipation:	977.44 BTU/h
Weight & dimensions
Width:	440 mm
Depth:	180 mm
Height:	44 mm
Packaging data
Cables included:	AC
Quick start guide:
Logistics data
Harmonized System (HS) code:	85176990
