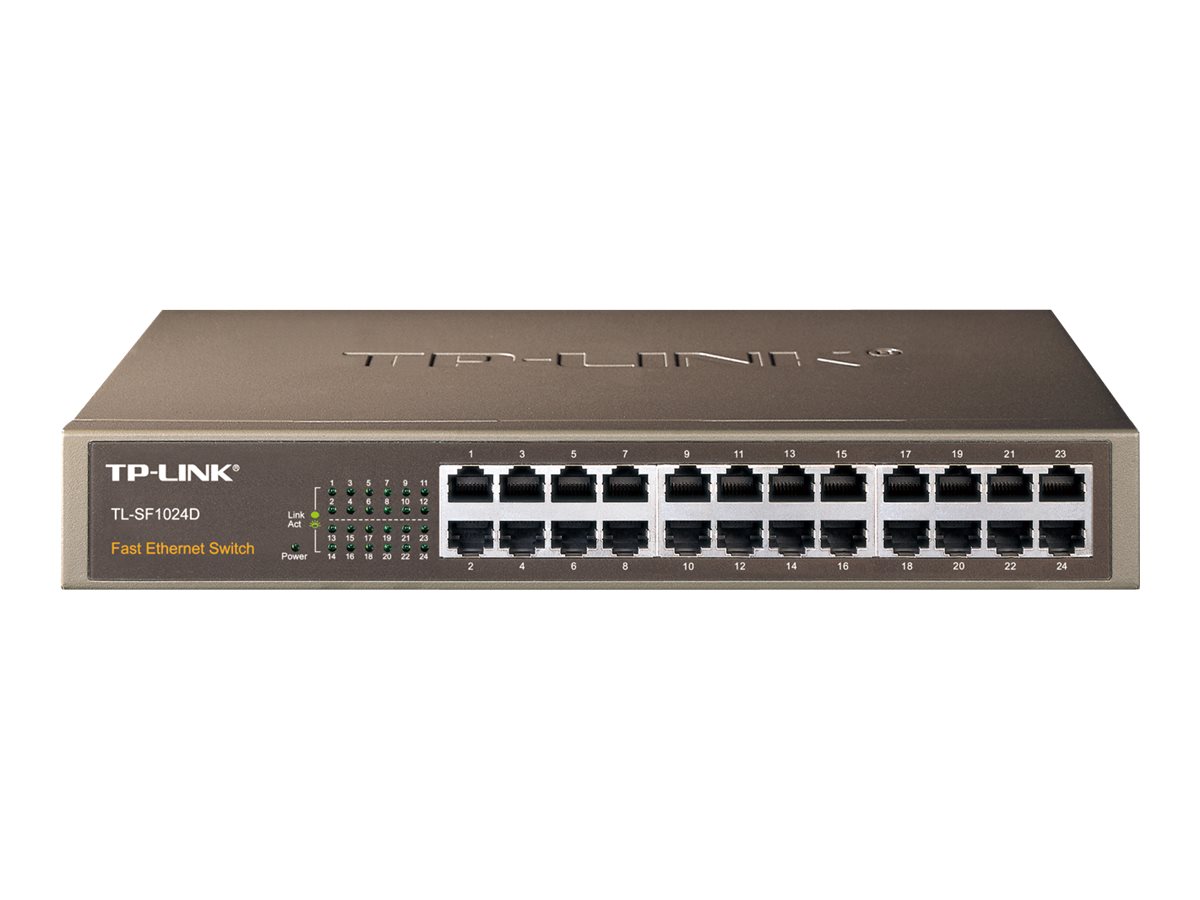

TP-Link TL-SF1024D network switch Unmanaged Fast Ethernet (10/100) Black

What This Product DoesThe 24-Port 10/100Mbps Switch TL-SF1024D provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024D can save the power consumption and most of the packaging material can be recycled, making it an eco-friendly solution for your business network.What This Product DoesThe 24-Port 10/100Mbps Switch TL-SF1024D provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024D can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.TP-LINK Green TechnologyThis new generation The 24-Port 10/100Mbps Switch TL-SF1024D features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.High PerformanceThe rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1024D forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024D work reliably.Easy to UseThe auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.- Innovative energy-efficient technology saves power up to 75%- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput- 4.8 Gbps Switching Capacity- Store and forward Switching scheme- Auto-MDI/MDIX eliminates the need for crossover cables- Supports MAC address auto-learning and auto-aging- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.- Plug and Play design simplifies installation- Fanless design to make sure it works quietly

Management features
Switch type:	Unmanaged
Quality of Service (QoS) support:
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	24
Basic switching RJ-45 Ethernet ports type:	Fast Ethernet (10/100)
Power connector:	DC-in jack
Network
Networking standards:	IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support:
Auto MDI/MDI-X:
Data transmission
MAC address table:	8000 entries
Switching capacity:	10 Gbit/s
Throughput:	3.57 Mpps
Packet buffer memory:	2 MB
Design
Rack mounting:
Product colour:	Black
LED indicators:
Certification:	FCC, CE, RoHS
Power
AC input voltage:	100 - 240 V
AC input frequency:	50 - 60 Hz
Power consumption (typical):	3.53 W
Power over Ethernet (PoE)
Power over Ethernet (PoE):
Operational conditions
Operating temperature (T-T):	0 - 40 °C
Storage temperature (T-T):	-40 - 70 °C
Operating relative humidity (H-H):	10 - 90%
Storage relative humidity (H-H):	5 - 90%
Weight & dimensions
Width:	294 mm
Depth:	180 mm
Height:	44 mm
Logistics data
Harmonized System (HS) code:	85176990
