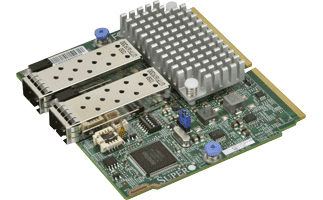

Supermicro AOC-MTGN-i2S Internal Ethernet / Fiber 10000 Mbit/s

The Ultimate 10G SFP+ Ethernet Controller in Supermicro Super I/O ModuleSupermicro® Super I/O Modules provide flexible I/O networking options and the AOC-MTGN-i2S is the most flexible and scalable 10GbE SFP+ SIOM controller for today's demanding data center environments. Based on Intel 10GbE network controller 82599, they address the demanding needs of the next generation data center by providing unmatched features for virtualization, flexibility for LAN and SAN networking.

Ports & interfaces
Connectivity technology:	Wired
Interface:	Ethernet / Fiber
Fiber ports quantity:	2
Fiber optic connector:	SFP+
Network
Maximum data transfer rate:	10000 Mbit/s
Networking standards:	IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad
Web-based management:
Supported network protocols:	IPv4, IPv6, SNMP
iSCSI support:
Load balancing system:
LAN controller:	Intel® 82599ES
Design
Internal:
Power
Power consumption (typical):	6.2 W
System requirements
Windows operating systems supported:	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported:
Other operating systems supported:	FreeBSD
Server operating systems supported:	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Operational conditions
Operating temperature (T-T):	0 - 55 °C
Storage temperature (T-T):	-40 - 70 °C
Operating relative humidity (H-H):	0 - 90%
Sustainability
Sustainability certificates:	RoHS
Weight & dimensions
Width:	92 mm
Depth:	87.1 mm
Packaging data
Quantity:	1
Other features
Flow control support:
