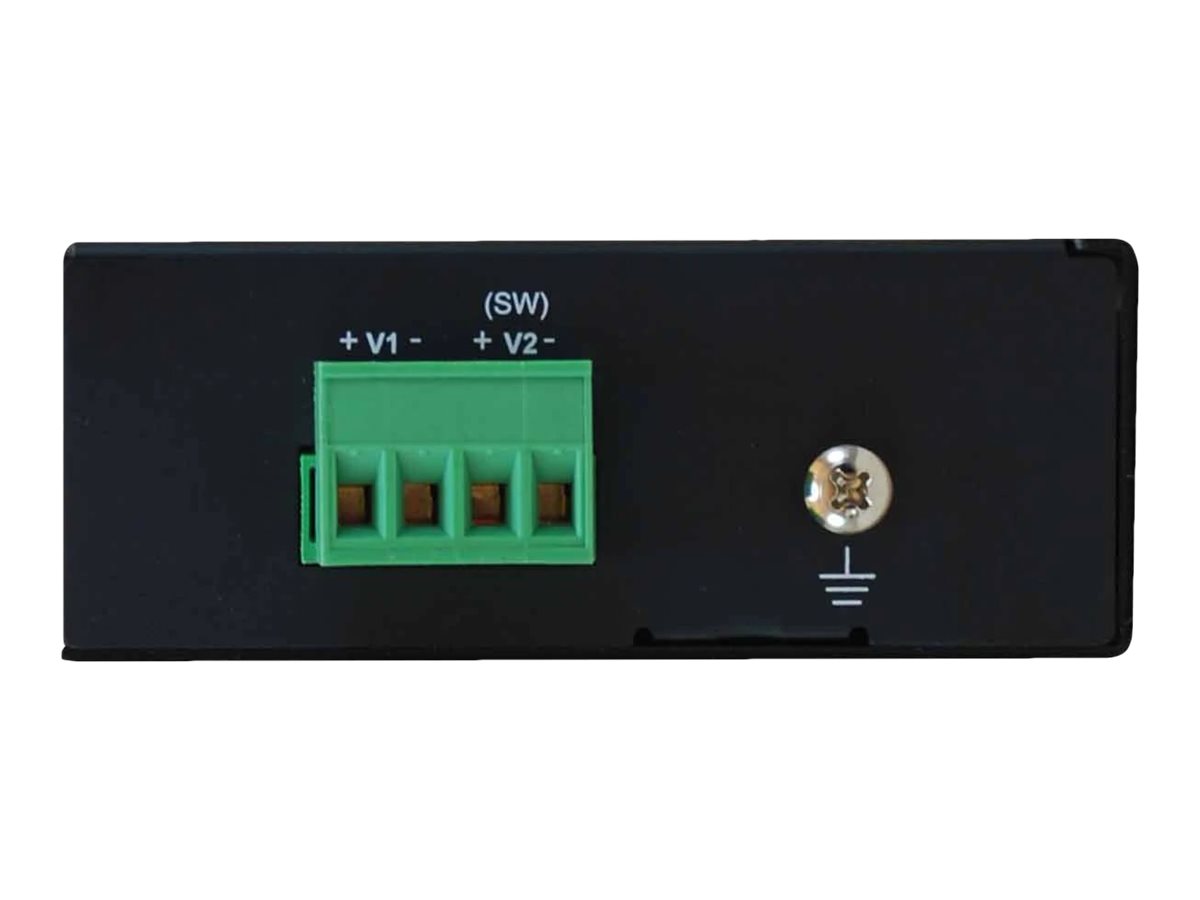

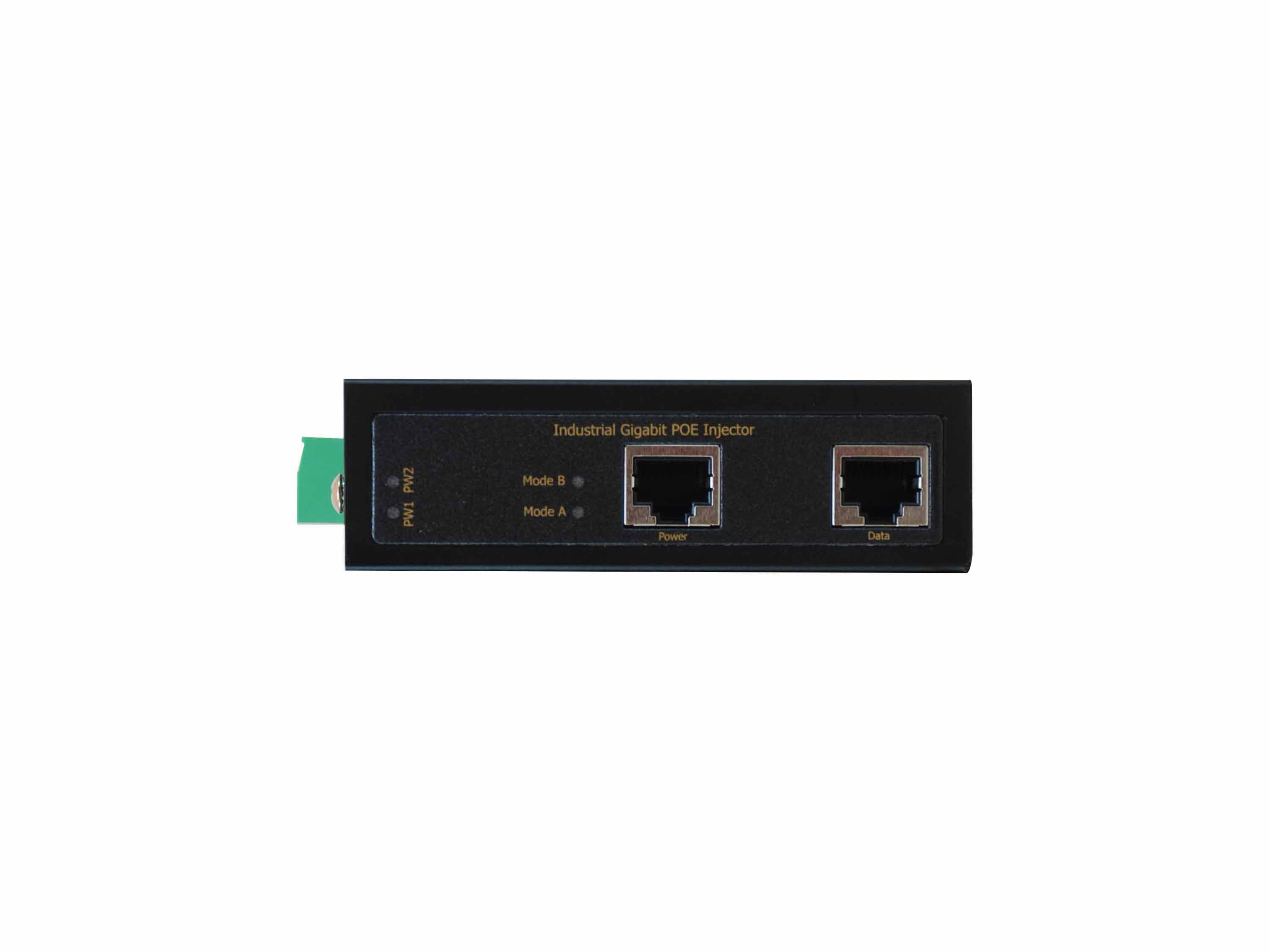

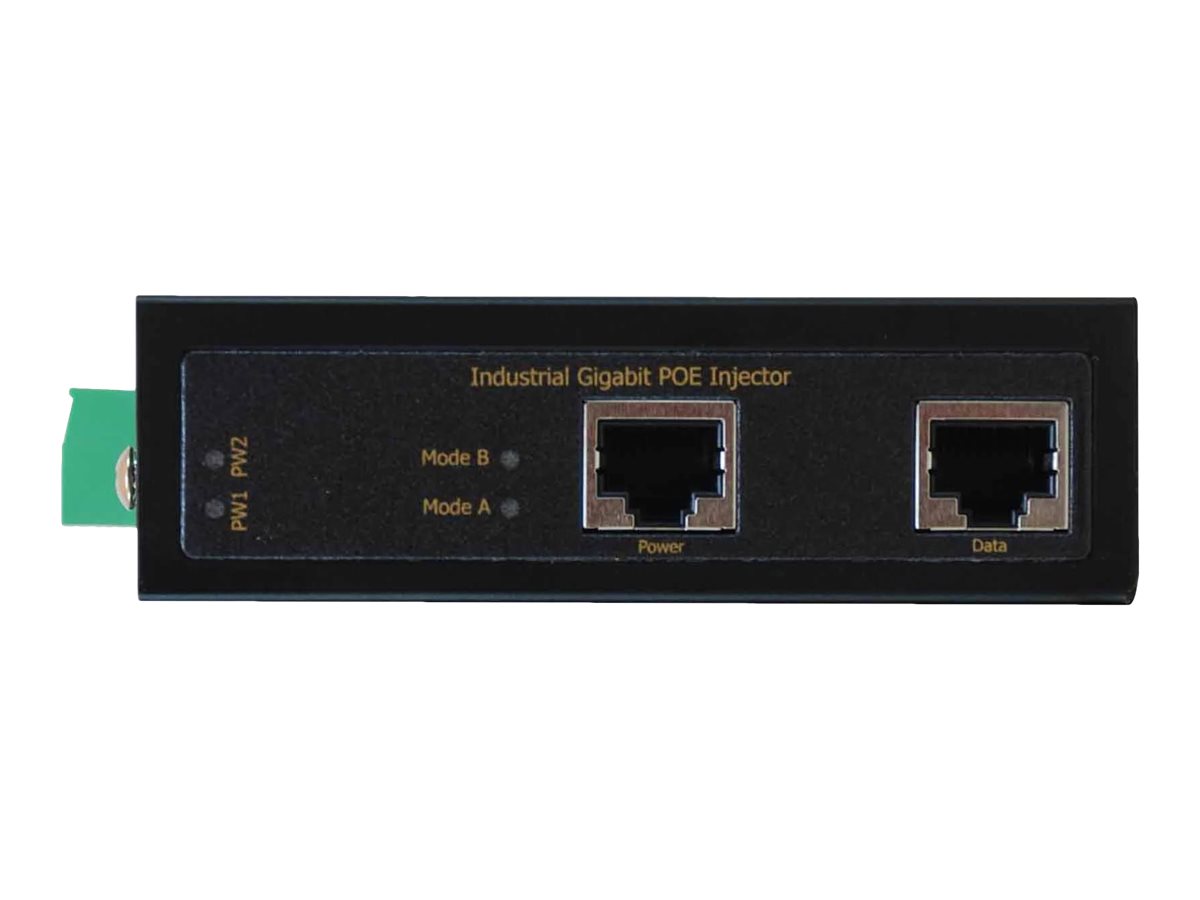

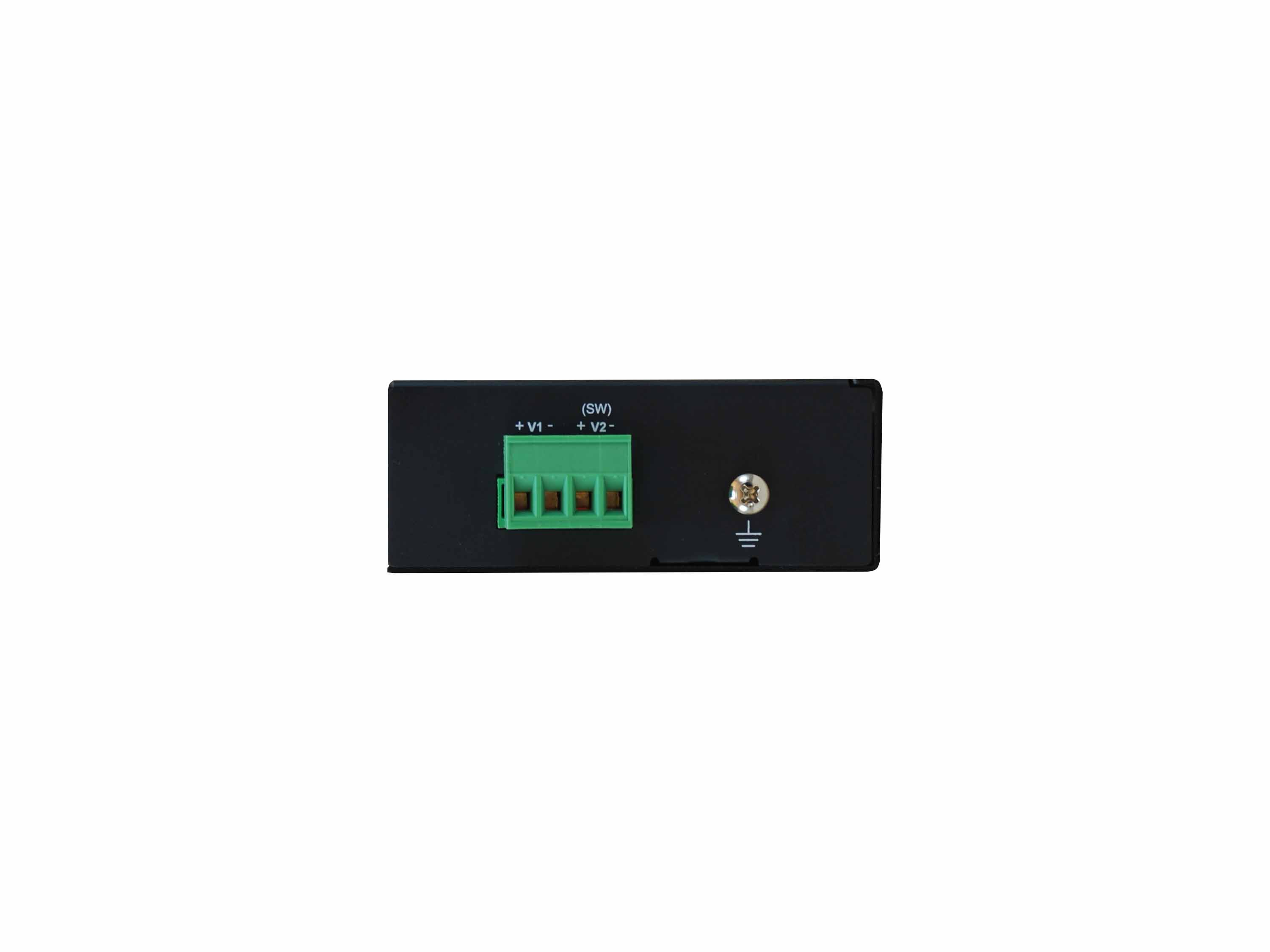

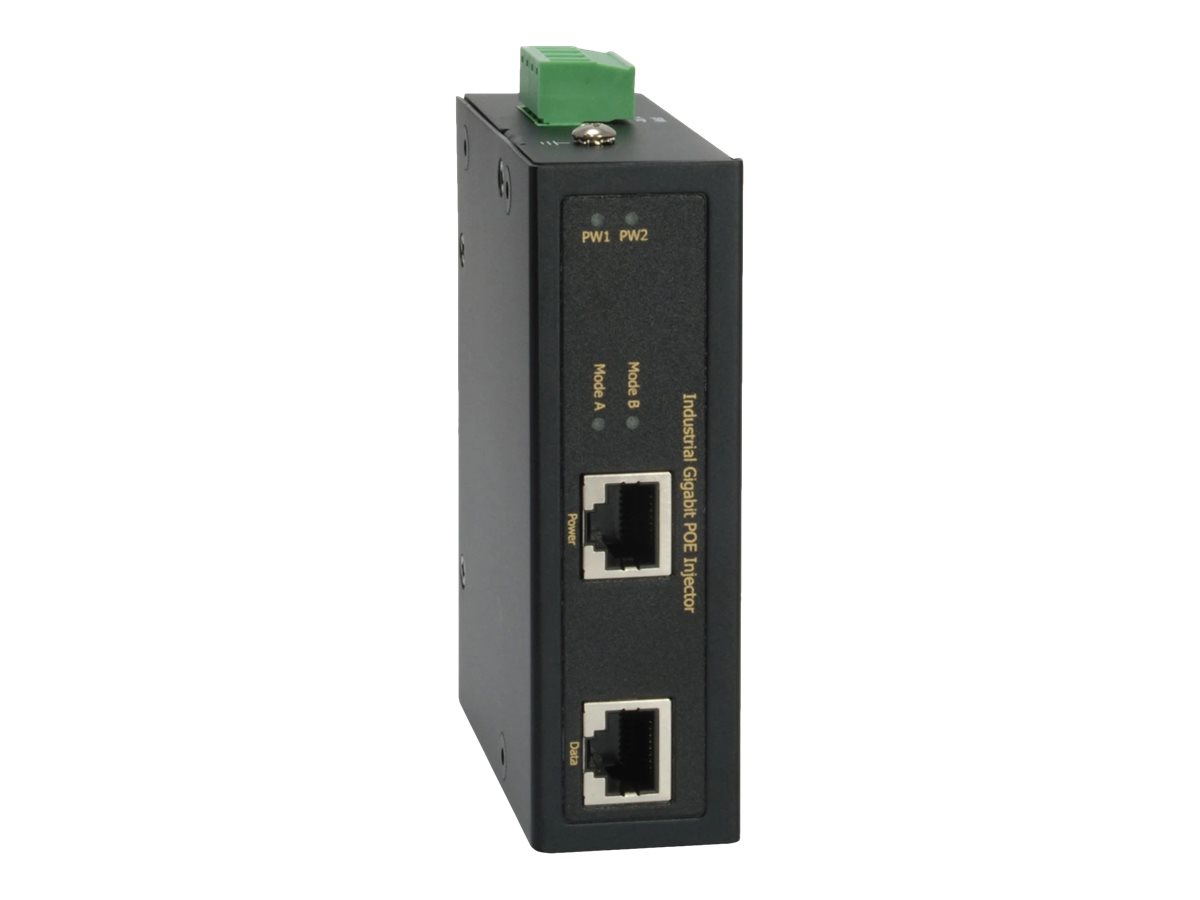

LevelOne IGP-0102 PoE adapter Gigabit Ethernet

The LevelOne IGP-0102 is a Power over Ethernet (PoE) injector that not only delivers a cost-effective solution for power distribution, but also provides a seamless way of deploying Powered Devices (PDs) on existing LAN infrastructure.Furthermore, non-PoE devices like wireless access points can also be powered up remotely by adding additional PoE splitters, since power and data are further split into two cables. These devices can therefore be installed in hard-to-reach areas like ceilings where there are no outlets or electrical wiring nearby.

Network
Ethernet interface type:	Gigabit Ethernet
Ethernet LAN data rates:	1000 Mbit/s
Power over Ethernet (PoE):
Networking standards:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Features
Product colour:	Black
Plug and Play:
Maximum operating distance:	100 m
LED indicators:	Link
Ports & interfaces
Ethernet LAN (RJ-45) ports:	2
Power
Input voltage:	15 - 56 V
Power over Ethernet (PoE) power per port:	36 W
Operational conditions
Operating temperature (T-T):	-40 - 75 °C
Operating relative humidity (H-H):	5 - 95%
Weight & dimensions
Width:	81.5 mm
Depth:	32 mm
Height:	103 mm
Weight:	140 g
Packaging data
Package width:	165 mm
Package depth:	65 mm
Package height:	215 mm
Package weight:	370 g
Package type:	Box
Packaging content
Number of products included:	1 pc(s)
Logistics data
Harmonized System (HS) code:	85044095
