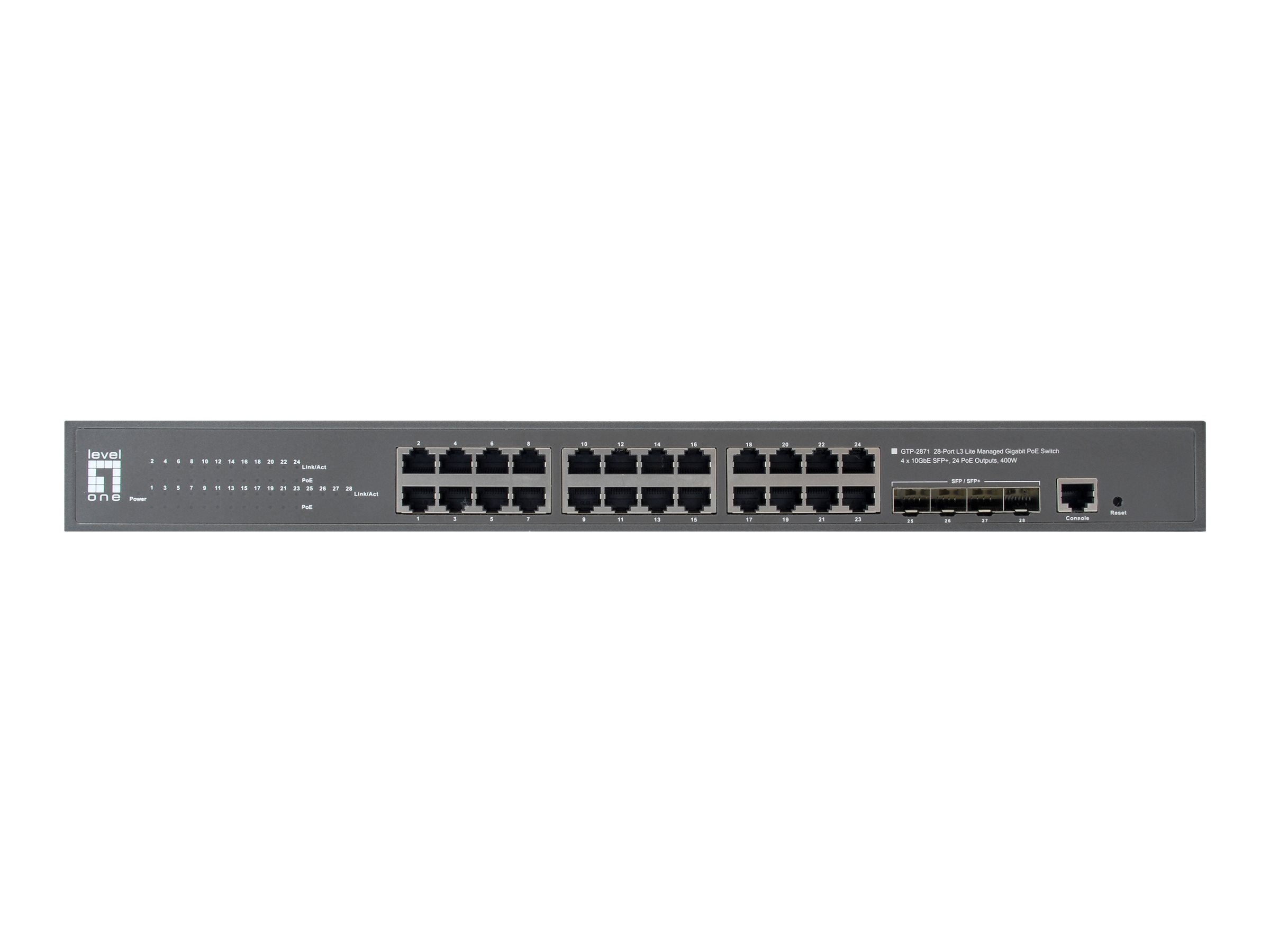

LevelOne GTP-2871 network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

The GTP-2871 is LevelOne latest generation of 28-Port L3 Lite Managed Gigabit PoE Switch, with 4 10G SFP+ port connectivity. offers powerful L2 and L3 Lite features, better PoE functionality with 400W PoE power budget and usability, The switch also supports the most advanced IPv6 management,IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment.The GTP-2871 PoE-enabled switches features an IEEE 802.3af/at certified. are ideal for businesses looking to power VoIP phones, wireless access points or network cameras. The GTP-2871 24-port PoE Switch supports up to 30 W of power output giving you flexibility in power allocation for a variety of powered devices enabling you to scale your operations to meet business growth, operational cost savings, and ease of management.

Management features
Switch type:	Managed
Switch layer:	L3
Quality of Service (QoS) support:
Web-based management:
Traffic classification:
ARP inspection:
Configuring Location Settings (CLI):
System event log:
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	24
Basic switching RJ-45 Ethernet ports type:	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity:	24
SFP+ module slots quantity:	4
Fiber ports quantity:	4
Fiber optic connector:	SFP+
Power connector:	AC-in jack
Network
Networking standards:	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
10G support:
Port mirroring:
Full duplex:
Link aggregation:
Broadcast storm control:
Rate limiting:
Spanning tree protocol:
Ethernet LAN data rates:	10,100,1000 Mbit/s
Data transmission
MAC address table:	16000 entries
Switching capacity:	128 Gbit/s
Forwarding rate:	95.232 Mpps
Store-and-forward:
Static route:
Maximum data transfer rate:	10 Gbit/s
Jumbo frames support:
Jumbo frames:	12000
Packet buffer memory:	1.5 MB
Security
DHCP features:	DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL):
IGMP snooping:
IGMP proxy:
Authentication:	MAC-based authentication
Authentication type:	RADIUS
Queue scheduling algorithms:	Priority queuing (PQ), Weighted Round Robin (WRR)
Multicast features
Multicast support:
Design
Rack mounting:
Product colour:	Grey
Housing material:	Metal
Reset button:
LED indicators:
Country of origin:	China
Certification:	CE
Performance
Virtual stacking (units):	4
Internal memory:	512 MB
Flash memory:	32 MB
Firmware upgradeable:
Plug and Play:
Mean time between failures (MTBF):	150000 h
Power
AC input voltage:	100 - 240 V
AC input frequency:	50 - 60 Hz
Input current:	6 A
Power consumption (typical):	468.2 W
Power over Ethernet (PoE)
Power over Ethernet (PoE):
Power over Ethernet (PoE) power per port:	30 W
Total Power over Ethernet (PoE) budget:	400 W
Operational conditions
Operating temperature (T-T):	0 - 45 °C
Storage temperature (T-T):	-40 - 70 °C
Operating relative humidity (H-H):	10 - 90%
Storage relative humidity (H-H):	5 - 95%
Weight & dimensions
Width:	330 mm
Depth:	440 mm
Height:	44.5 mm
Weight:	4.48 kg
Packaging data
Cables included:	AC
Quick start guide:
Rack mount kit:
Rubber feet:
Resource CD:
Package width:	390 mm
Package depth:	596 mm
Package height:	80 mm
Package weight:	6 kg
Sustainability
Sustainability certificates:	RoHS
Logistics data
Harmonized System (HS) code:	85176990
