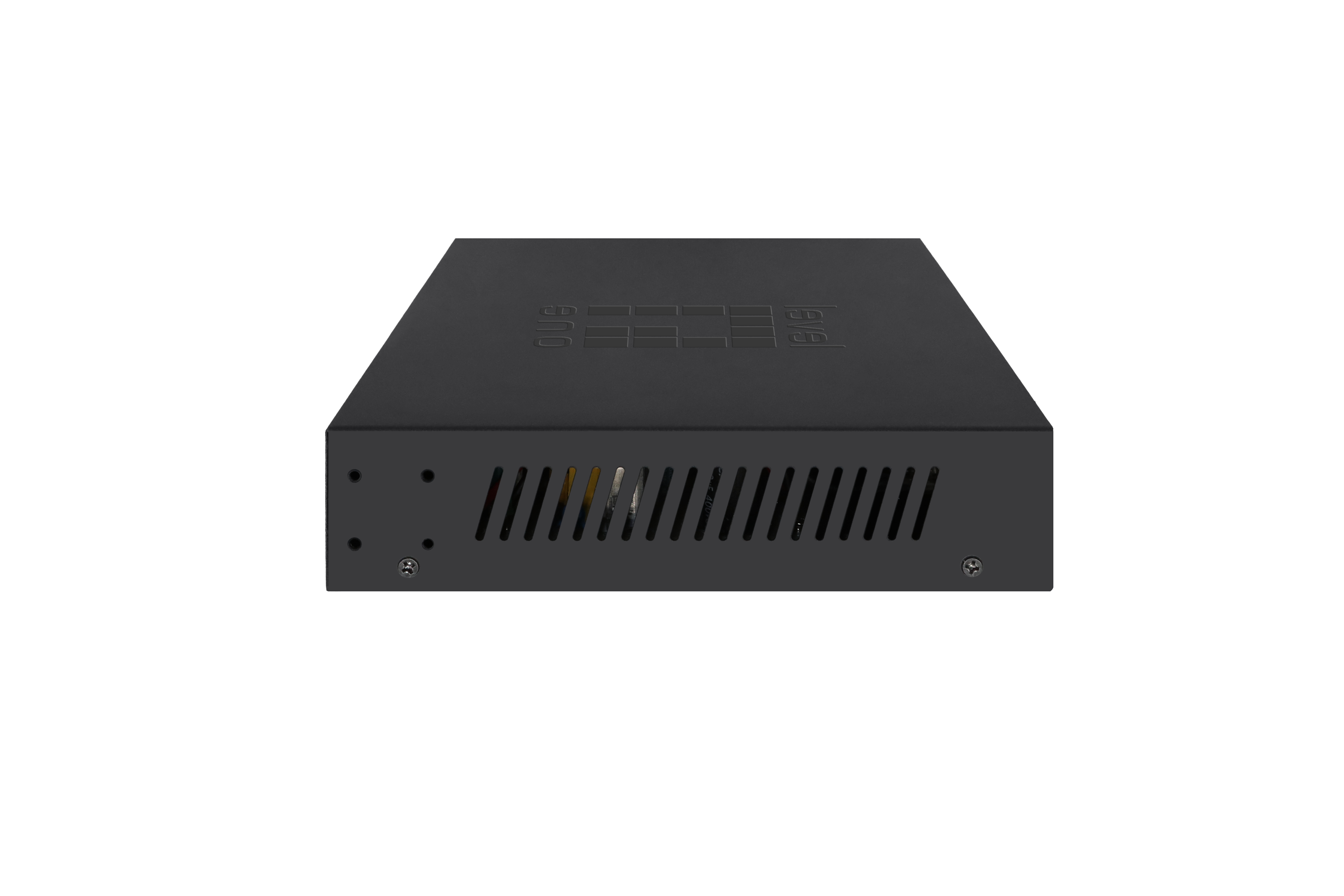

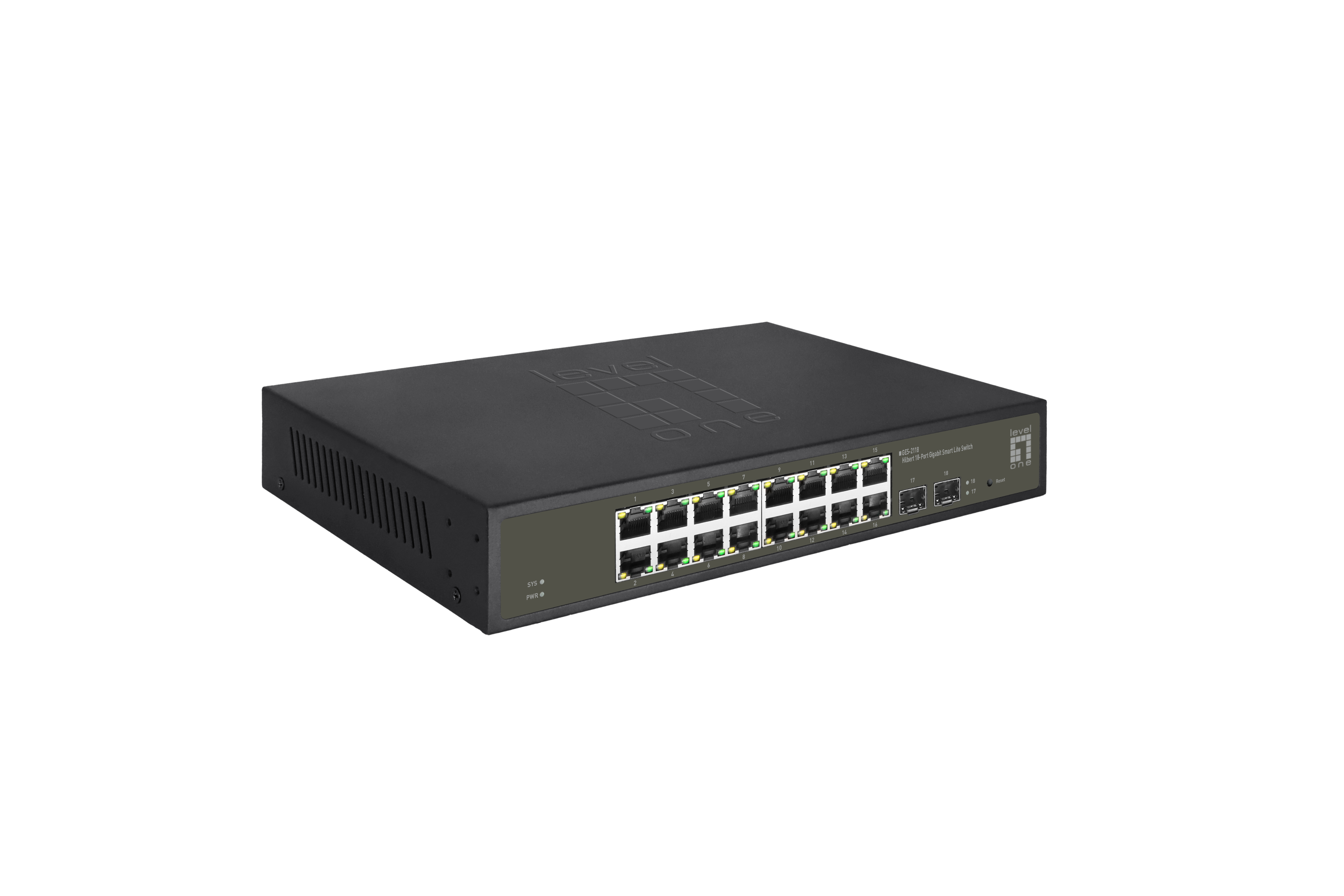

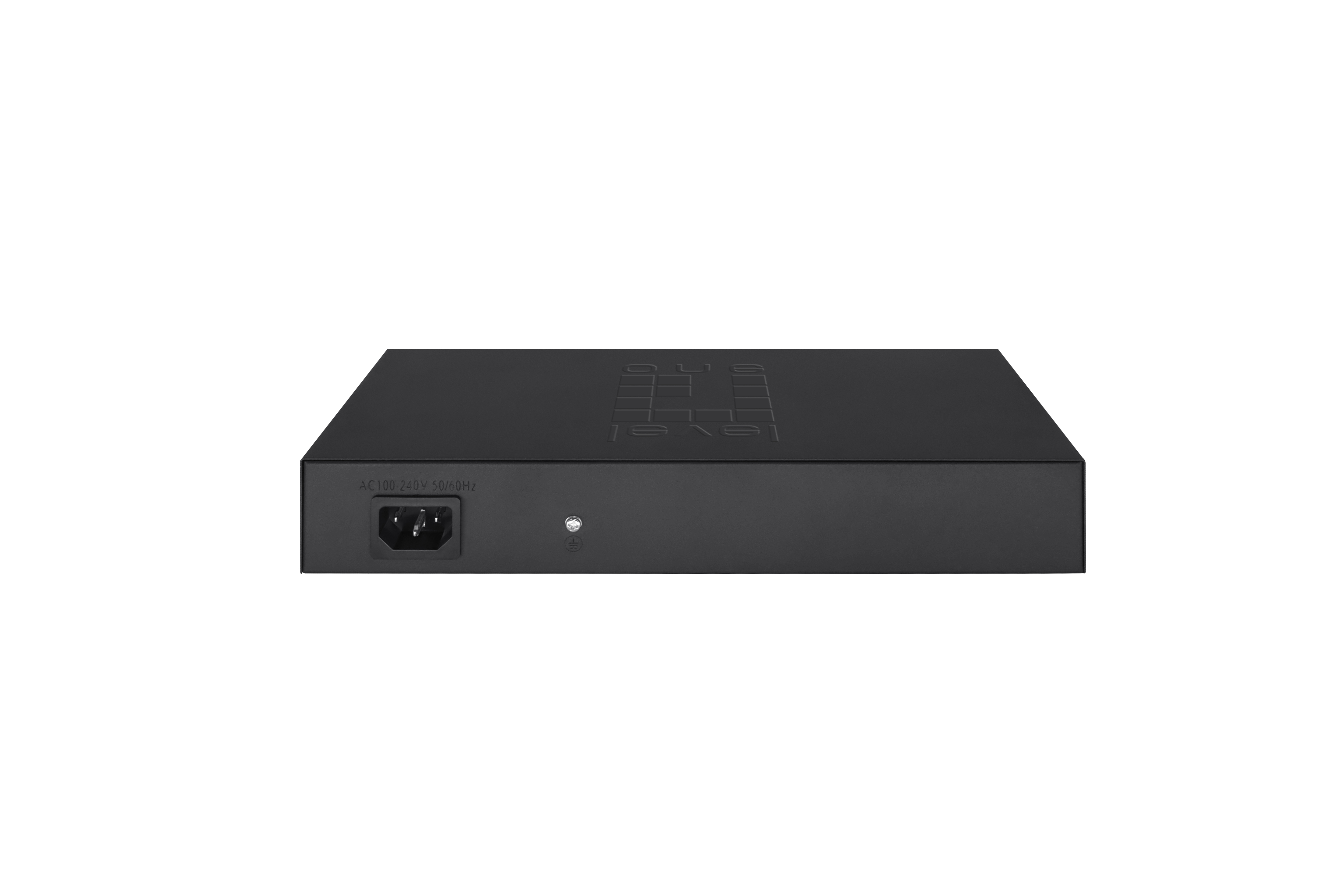

LevelOne Hilbert 18-Port Gigabit Smart Lite Switch, 16 x Gigabit RJ45, 2 x Gigabit SFP

The LevelOne GES-2118 Hilbert gigabit smart lite switch is a next-generation Ethernet Switch offering powerful better functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections. GES-2118 delivers 16 (10M/100M/1G) RJ45 ports and 2 Gigabit SFP ports. can be matched with the latest LevelOne IP Locator, the software is the easiest to use switch discovery tool, it can search all Hilbert series switches, instantly know the forgotten IP and other info. Compatible with mainstream Windows and Mac operating systems.The LevelOne GES-2118 provides high HW performance and environment flexibility for Enterprises. GES-2118 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership.

Management features
Switch type:	Managed
Switch layer:	L2
Quality of Service (QoS) support:
Web-based management:
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	16
Basic switching RJ-45 Ethernet ports type:	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity:	16
SFP module slots quantity:	2
Network
Networking standards:	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support:
Port mirroring:
Link aggregation:
Broadcast storm control:
Rate limiting:
MAC address auto-learning supported:
MAC address auto-aging supported:
VLAN support:
Virtual LAN features:	Tagged VLAN
Number of VLANs:	32
Data transmission
MAC address table:	8000 entries
Switching capacity:	36 Gbit/s
Number of queues:	4
Jumbo frames support:
Jumbo frames:	9000
Packet buffer memory:	4.1 MB
Security
IGMP snooping:
Multicast features
Multicast support:
Design
Rack mounting:
Product colour:	Black
LED indicators:	Activity, Link, Power
Country of origin:	China
Certification:	UKCA, FCC Class A
Performance
Flash memory:	2 MB
Fanless:
Mean time between failures (MTBF):	43800 h
Technical details
Master (outer) cases per pallet (air):	12 pc(s)
Pallet gross length:	80 cm
Pallet gross width:	120 cm
Pallet height (air):	182.4 cm
Power
Power source:	AC
AC input voltage:	100 - 240 V
AC input frequency:	50 - 60 Hz
Power consumption (max):	15 W
Surge protection:
Surge protection voltage:	8 kV
Power over Ethernet (PoE)
Power over Ethernet (PoE):
Operational conditions
Operating temperature (T-T):	0 - 45 °C
Storage temperature (T-T):	-40 - 70 °C
Operating relative humidity (H-H):	10 - 90%
Storage relative humidity (H-H):	5 - 95%
Heat dissipation:	51.18 BTU/h
Weight & dimensions
Width:	271 mm
Depth:	181.5 mm
Height:	44.5 mm
Weight:	1.08 kg
Packaging data
Cables included:	AC
Quick start guide:
Package type:	Box
Rack mount kit:
Package width:	350 mm
Package depth:	267 mm
Package height:	89 mm
Package weight:	1.68 kg
Sustainability
Sustainability compliance:
Sustainability certificates:	CE, RoHS
Logistics data
Master (outer) case net weight:	1 kg
Master (outer) case width:	480 mm
Master (outer) case length:	370 mm
Master (outer) case height:	560 mm
Master (outer) case gross weight:	17.8 kg
Products per master (outer) case:	10 pc(s)
