Products description

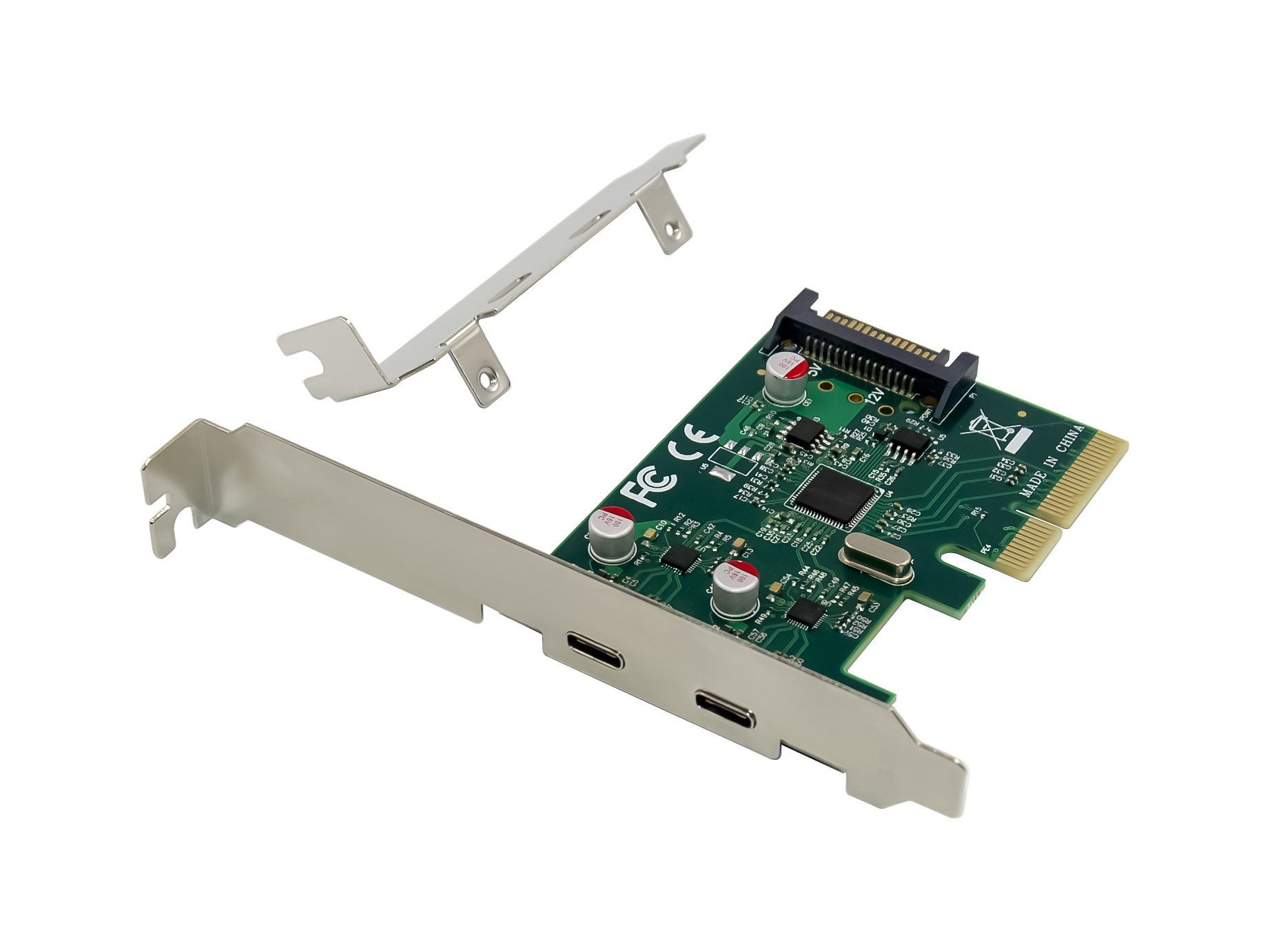

This PCIe card allows you to easily add two high-speed USB 3.2 Gen 2 ports to your desktop computer, with a maximum data transfer rate of 10Gb/s. It offers a fast and efficient solution for transferring large files and documents. Effortlessly upgrade your desktop and enjoy enhanced data transfer speeds with this reliable PCIe card.
| Ports & interfaces | |
| Host interface: | PCIe |
| Output interface: | USB 3.2 Gen 2 (3.1 Gen 2) |
| Expansion card standard: | PCI 3.0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 2 |
| SATA power connector type: | SATA 15-pin |
| Design | |
| Internal: | Yes |
| Product colour: | Green |
| Hot-swap: | Yes |
| Country of origin: | China |
| Features | |
| Chipset: | ASM3142 |
| Data transfer rate (max): | 10 Gbit/s |
| UASP support: | Yes |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 85 °C |
| Operating relative humidity (H-H): | 15 - 90% |
| System requirements | |
| Windows operating systems supported: | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Linux operating systems supported: | Yes |
| Technical details | |
| Compliance certificates: | CE, RoHS |
| Weight & dimensions | |
| Width: | 80 mm |
| Depth: | 58 mm |
| Height: | 30 mm |
| Weight: | 32 g |
| Packaging data | |
| Mounting brackets included: | Yes |
| Drivers included: | Yes |
| Quick installation guide: | Yes |
| Package width: | 30 mm |
| Package depth: | 130 mm |
| Package height: | 140 mm |
| Package weight: | 120 g |
| Package type: | Box |
| Logistics data | |
| Harmonized System (HS) code: | 8471800000 |
| Products per master (outer) case: | 30 pc(s) |
| Master (outer) case width: | 405 mm |
| Master (outer) case length: | 340 mm |
| Master (outer) case height: | 205 mm |
| Master (outer) case gross weight: | 3.6 kg |
| Pallet gross width: | 120 cm |
| Pallet gross length: | 80 cm |
| Pallet gross height: | 163 cm |
| Master (outer) cases per pallet: | 36 pc(s) |
