Products description

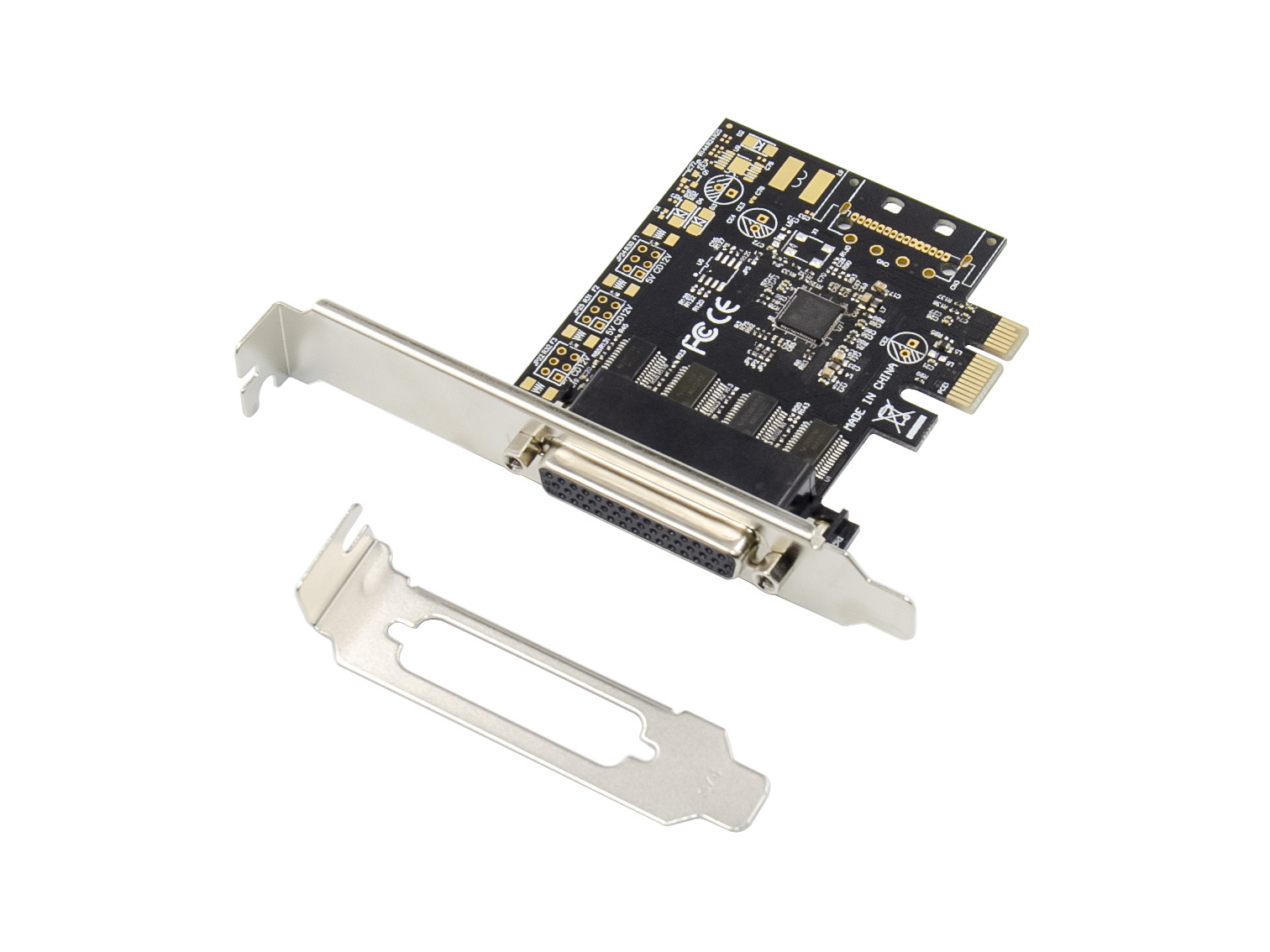

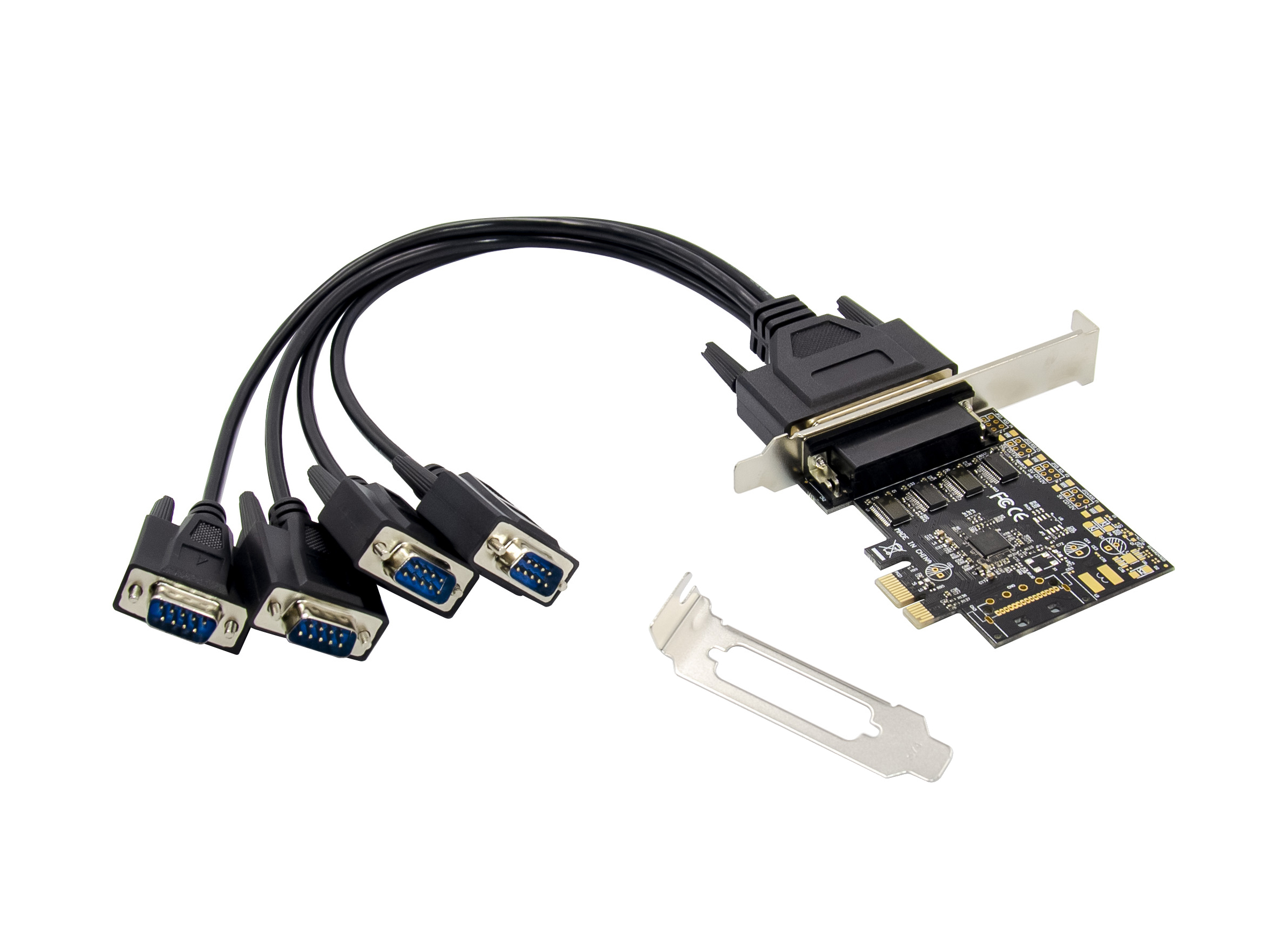

The 4-Port DB9 RS232 Serial PCIe Card features four serial ports, providing an easy expansion for additional devices. The serial ports support the RS-232 protocol with a transmission speed of up to 115200bps and also support hardware and software flow control.
| Ports & interfaces | |
| Host interface: | PCIe |
| Output interface: | RS-232 |
| Expansion card standard: | PCIe 2.0 |
| Serial ports quantity: | 4 |
| Serial interface type: | RS-232 |
| Design | |
| Internal: | Yes |
| Product colour: | Black |
| Country of origin: | China |
| Features | |
| FIFO (First In, First Out): | 256 B |
| Operational conditions | |
| Operating temperature (T-T): | -10 - 55 °C |
| Storage temperature (T-T): | -40 - 70 °C |
| Operating relative humidity (H-H): | 5 - 95% |
| System requirements | |
| Windows operating systems supported: | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Linux operating systems supported: | Yes |
| Technical details | |
| Sustainability certificates: | CE, RoHS |
| Compliance certificates: | CE, RoHS |
| Weight & dimensions | |
| Width: | 85 mm |
| Depth: | 69 mm |
| Height: | 3 mm |
| Weight: | 250 g |
| Packaging data | |
| Drivers included: | Yes |
| Quick installation guide: | Yes |
| Package width: | 172 mm |
| Package depth: | 140 mm |
| Package height: | 75 mm |
| Package type: | Box |
| Logistics data | |
| Harmonized System (HS) code: | 8471800000 |
| Products per master (outer) case: | 25 pc(s) |
| Master (outer) case width: | 490 mm |
| Master (outer) case length: | 380 mm |
| Master (outer) case height: | 350 mm |
| Master (outer) case gross weight: | 10 kg |
| Pallet gross width: | 120 cm |
| Pallet gross length: | 80 cm |
| Pallet gross height: | 163 cm |
| Master (outer) cases per pallet: | 30 pc(s) |
| Sustainability compliance: | Yes |
