- Details

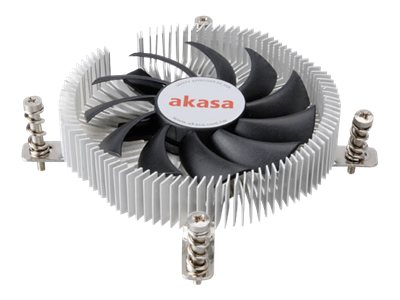

Ultra compact and low noise cooler for Intel Core 2 Duo and Core i3, i5 CPU s. The low profile design with embedded fan makes it a perfect solution for Thin mini-ITX, HTPC and SFF systems.
Aluminium heatsink and twin ball bearing fan ensure high efficiency and long life. High engineered multi directional aluminium heatsink maximises heat dissipation and PWM fan provides optimal CPU, motherboard and VRM cooling with minimal noise levels.
Pre-applied spring-loaded screws and motherboard backplate guarantee safe retention. Pre-applied high performance thermal compound ensures clean and easy installation.
- Hi-engineered aluminium heatsink.
- Multi-directional fins for maximum system cooling.
- Embedded 8cm PWM fan with long life twin ball bearing.
- Pre-applied spring-loaded screws and motherboard backplate.
- Dual mounting for Intel LGA775, LGA1150, LGA1155 and LGA1156 platforms.
- High performance thermal interface is pre-applied.
- Total height only 21mm.
| Performance | |
| Suitable location: | Processor |
| Type: | Cooler |
| Fan diameter: | 7.5 cm |
| Supported processor sockets: | LGA 1156 (Socket H), LGA 1155 (Socket H2), LGA 1150 (Socket H3) |
| Compatible processor series: | Intel® Core i3, Intel® Core i5 |
| Rotational speed (min): | 600 RPM |
| Rotational speed (max): | 3000 RPM |
| Noise level (high speed): | 30.75 dB |
| Maximum airflow: | 23.45 cfm |
| Maximum air pressure: | 1.81 mmH2O |
| Mean time between failures (MTBF): | 50000 h |
| Design | |
| Material: | Aluminium |
| Power | |
| Voltage: | 12 V |
| Weight & dimensions | |
| Width: | 85.2 mm |
| Depth: | 87.2 mm |
| Height: | 21 mm |
| Weight: | 154 g |
| Technical details | |
| Bearing technology: | Double ball bearing |
| Other features | |
| Connector(s): | 4-pin |
