Products description

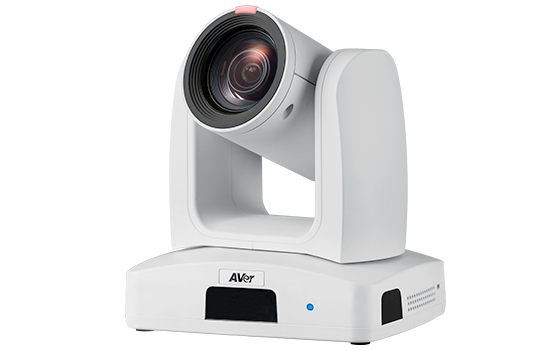

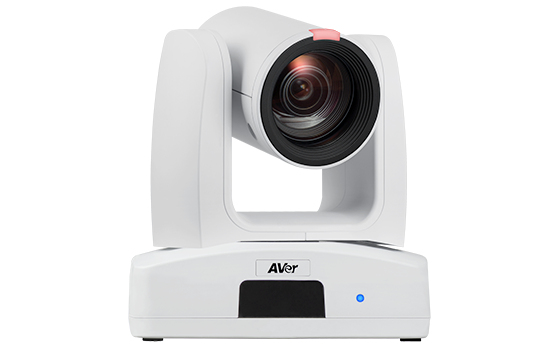

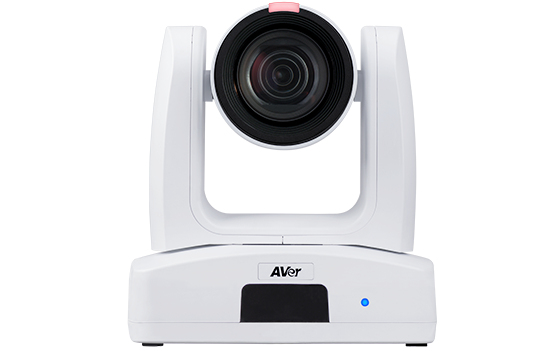

PTZ231
Professional PTZ Camera
AVer s PTZ231 is an advanced PTZ camera that gives you complete control over your streaming content. Enjoy professional-grade streaming with full HD 1080p outputs at 60 fps, a 30X optical zoom, and the cutting-edge SmartShoot feature. Upgrade your livestream performances and dazzle your audience with the PTZ231.
| Camera | |
| Megapixel (approx.): | 2 MP |
| Camera type: | Single camera |
| Sensor type: | Exmor CMOS |
| Optical sensor size: | 25.4 / 2.8 mm (1 / 2.8") |
| Zoom capability: | Yes |
| Optical zoom: | 30x |
| Digital zoom: | 1x |
| Combined zoom: | 30x |
| Focal length range: | 4.5 - 135 mm |
| Field of view (FOV) angle: | 69.2° |
| Horizontal field of view: | 62.3° |
| Vertical field of view: | 37.3° |
| Minimum illumination: | 0.5 lx |
| Signal-to-Noise Ratio (SNR): | 50 dB |
| Aperture range (F-F): | 1.8 - 4.7 |
| White balance: | ATW, Auto, Manual, One push |
| Auto exposure: | Yes |
| Light exposure modes: | Aperture priority AE, Auto, Manual |
| Closest focusing distance: | 0.1 m |
| PTZ control: | Yes |
| Video | |
| Maximum video resolution: | 1920 x 1080 pixels |
| Maximum frame rate: | 60 fps |
| HD type: | Full HD |
| Resolution at capture speed: | 1920x1080@60fps |
| Supported video modes: | 720p, 1080p |
| Video formats supported: | H.264, H.265 |
| Supported graphics resolutions: | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Design | |
| Product colour: | White |
| Tilt angle range: | -30 - 90° |
| Pan range: | -170 - 170° |
| LED indicators: | Power, Status |
| Tilt speed (min): | 0.1 °/sec |
| Tilt speed (max): | 200 °/sec |
| Tilt preset speed: | 200 °/sec |
| Pan speed (min): | 0.1 °/sec |
| Pan speed (max): | 200 °/sec |
| Pan preset speed: | 200 °/sec |
| Country of origin: | Taiwan |

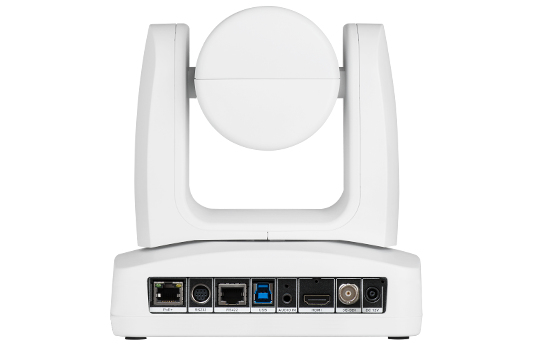

| Ports & interfaces | |
| HDMI ports quantity: | 1 |
| Power over Ethernet plus (PoE+) ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: | 1 |
| RS-232 ports: | 1 |
| RS-422 ports: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| DC-in jack: | Yes |
| 3G-SDI output: | Yes |
| Power | |
| Power source type: | AC, PoE |
| AC input frequency: | 50 - 60 Hz |
| AC input voltage: | 100 - 240 V |
| Operating voltage: | 12 V |
| Operating current: | 2 A |
| Power consumption (typical): | 19 W |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Storage temperature (T-T): | -20 - 60 °C |
| Operating relative humidity (H-H): | 20 - 80% |
| Storage relative humidity (H-H): | 20 - 95% |
| Packaging content | |
| Power supply included: | Yes |
| Remote control included: | Yes |
| Mounting kit: | Yes |
| System requirements | |
| Windows operating systems supported: | Windows 10, Windows 11, Windows 7 |
| Mac operating systems supported: | Yes |
| Other operating systems supported: | ChromeOS |
| Performance | |
| Cable lock slot: | Yes |
| Cable lock slot type: | Kensington |
| Logistics data | |
| Harmonized System (HS) code: | 8525890000 |
| Weight & dimensions | |
| Width: | 180 mm |
| Depth: | 145 mm |
| Height: | 192 mm |
| Weight: | 2 kg |
