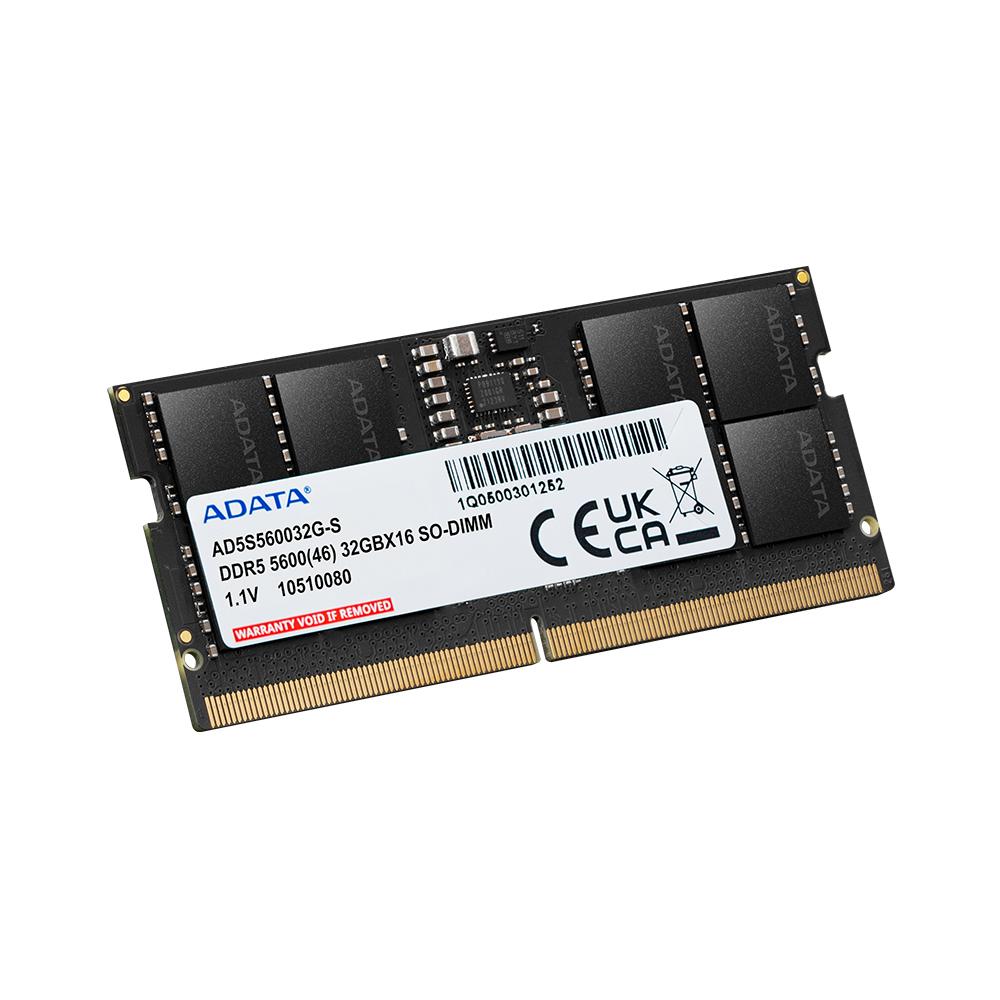

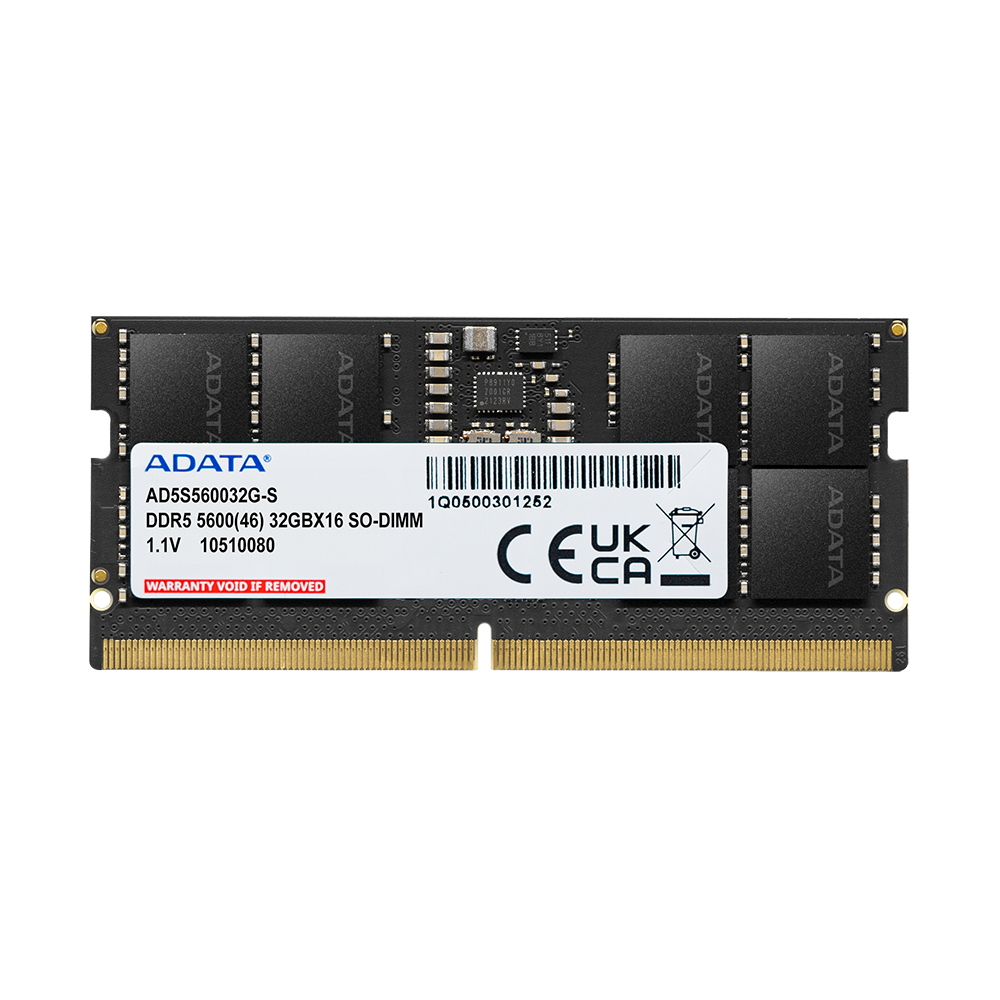

The future of DRAM is here in the form of the ADATA DDR5-5600 SO-DIMM module. Compared to its predecessors,
this module provides a significant speed boost, higher capacities, reduced power consumption, and increased
bandwidth per CPU core.
Higher Frequencies
The DDR5-5600 SO-DIMM delivers blazing frequencies of up to 5600 MHz, a major leap from the max. frequency of DDR4 modules (3200 MHz).
More Energy-Efficient
This next-gen memory module operates on just 1.1V, making it 8% more power-efficient than DDR4. What's more, it features a built-in Power Management IC (PMIC) to enhanced power supply stability.
Capacity Doubled
This memory module's architecture allows for more memory bank groups and banks. With the same area, more bank groups can be packed into the module, doubling what was possible with DDR4, giving you higher capacities.
Improved Stability
With error correcting code (ECC) this module can correct errors automatically in real-time. In addition to greatly reducing the burden of CPU calculations, it also provides increased stability and reliability for enterprise-class computers.
Features | |
Internal memory: | 16 GB |
Memory layout (modules x size): | 1 x 16 GB |
Internal memory type: | DDR5 |
Memory clock speed: | 5600 MHz |
Component for: | PC |
Memory form factor: | 262-pin SO-DIMM |
ECC: | Yes |
On-Die ECC: | Yes |
CAS latency: | 46 |
Memory voltage: | 1.1 V |
Module configuration: | 2048M x 8 |
Operational conditions | |
Operating temperature (T-T): | 0 - 85 °C |
Weight & dimensions | |
Width: | 55 mm |
Depth: | 170 mm |
Height: | 9 mm |
Weight: | 10.11 g |
Packaging data | |
Package width: | 300 mm |
Package depth: | 340 mm |
Package height: | 212 mm |
Package weight: | 22.21 g |
Package type: | Blister |
