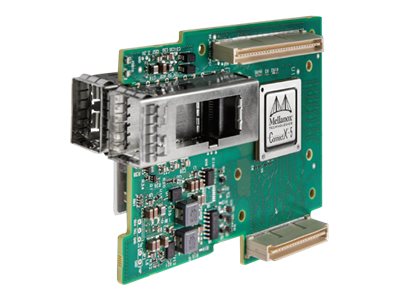

Mellanox NVIDIA ConnectX-5 EN MCX542B-ACAN - Netzwerkadapter

Netzwerkadapter

Plug-in-Karte

PCI Express 3.0 x8

PCIe 1.1, PCIe 2.0, PCIe 3.0

25 Gigabit SFP28 x 2

Kabelgebunden

Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet

25 Gbps

TCP/IP, UDP/IP, SMB, NFS

Auto-Negotiation, MPLS-Unterstützung, Quality of Service (QoS), RDMA-Unterstützung, PXE-Unterstützung, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI-Support, Advanced Error Reporting (AER), Unterstützung von Prüfsummen-Offload, Extended Message-Signaled Interrupts (MSI-X), iSCSI remote boot, Header Data Split (HDS), Transmit Side Scaling (TSS), RDMA over Converged Ethernet (RoCE), Priority-Based Flow Control (PFC), Network Controller Sideband Interface (NC-SI), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), TLP Processing Hint (TPH), Extended Reliable Connected transport (XRC), Dynamically Connected transport (DCT), Benutzermodus-Registrierung und Remapping des Speichers (UMR), On demand paging (ODP), Mellanox PeerDirect, Message Signaled Interrupts (MSI), OVS Offload, Data Plane Development Kit (DPDK), Jumbo Frame-Unterstützung (bis zu 9600 Bytes), VLAN Tagging, Open Compute Project (OCP) 2.0 Unterstützung, Accelerated Switching And Packet Processing (ASAP), MCTP over SMBus, Downstream Port Containment (DPC), Access Control Service (ACS), Process Address Space ID (PASID), Address Translation Services (ATS), Enhanced Transmission Selection (ETS), Quantized Congestion Notification (QCN), GENEVE-Support

IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm, OCP 2.0, IEEE 802.3by

2 x 25Gb Ethernet - SFP28

RoHS

FreeBSD, Microsoft Windows, Red Hat Enterprise Linux, CentOS, VMware ESX
