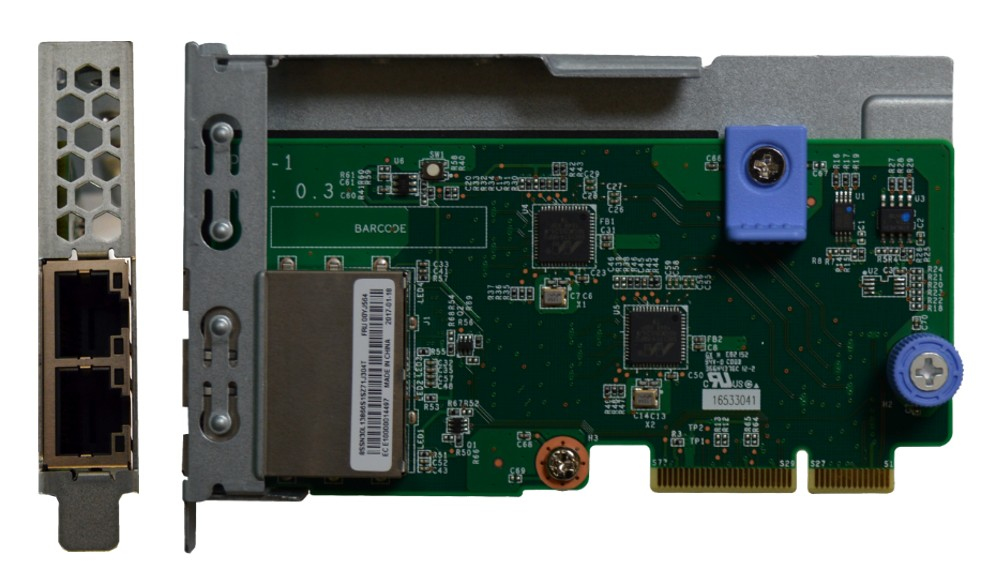

Lenovo ThinkSystem - Netzwerkadapter - LAN-on-motherboard (LOM)

Netzwerkadapter

Plug-in-Karte

LAN-on-motherboard (LOM)

Gigabit Ethernet x 2

Kabelgebunden

Gigabit Ethernet

1 Gbps

Virtuelle Funktionen: 128

RMON

Flusskontrolle, VLAN-Unterstützung, Wake on LAN (WOL), IPv6-Unterstützung, Quality of Service (QoS), RDMA-Unterstützung, Virtual Machine Device Queues (VMDq), PXE-Unterstützung, Large Send Offload (LSO), Receive Side Scaling (RSS), UEFI-Support, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, Class of Service (CoS), gekennzeichnetes VLAN, Extended Message-Signaled Interrupts (MSI-X), TCP-/IP-Prüfsummen-Offload, UDP-/IP-Prüfsummen-Offload, Virtual Ethernet Port Aggregator (VEPA), Network Controller Sideband Interface (NC-SI), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), Virtual Ethernet Bridge (VEB), TLP Processing Hint (TPH), Advanced Packet Filtering, Intel Virtual Technology (VT), Jumbo Frame-Unterstützung (bis zu 9728 Bytes)

IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1Qbg

2 x Marvell 88E1514

2 x Ethernet 1000 - RJ-45

ICES-003 Klasse A, RoHS, UL 60950-1 Second Edition, FCC Part 15 A, KCC Class A, VCCI Class A, RCM, RRA Class A

Intel PROSet

Microsoft Windows Server 2012 R2, SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, VMware ESXi 6.5, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, SuSE Linux Enterprise Server 12 SP2, VMware ESXi 6.0 update 3

Begrenzte Garantie - 1 Jahr

Lenovo ThinkAgile VX 1U Certified Node 7Y93  Lenovo ThinkAgile VX Certified Node 7Y94, 7Z12  Lenovo ThinkAgile VX7820 Appliance 7Z13  Lenovo ThinkSystem SR530  Lenovo ThinkSystem SR550  Lenovo ThinkSystem SR570  Lenovo ThinkSystem SR590  Lenovo ThinkSystem SR630  Lenovo ThinkSystem SR650  Lenovo ThinkSystem SR850  Lenovo ThinkSystem SR860  Lenovo ThinkSystem SR950
