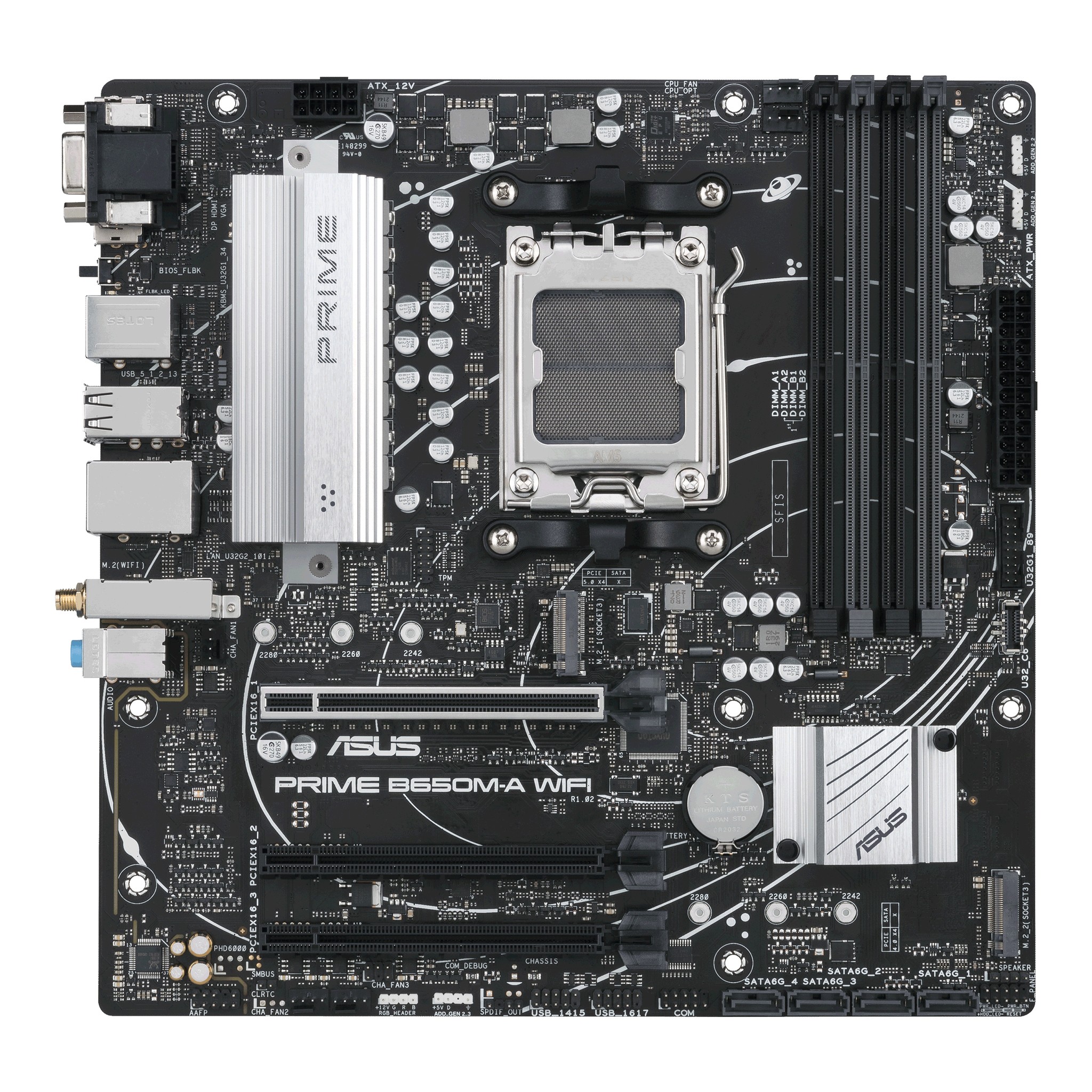

ASUS Prime B650M-A WIFI - Motherboard - micro ATX - Socket AM5 - AMD B650 Chipsatz - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - Onboard-Grafik (CPU erforderlich)

Motherboard - micro ATX

AMD B650

Socket AM5

1

Ryzen (unterstützt Ryzen 7000 Series)

128 GB

DDR5

5400 MHz (O.C.), 5600 MHz (O.C.), 4800 MHz, 5200 MHz, 5000 MHz

Non-ECC, ECC, on-die ECC

Ungepuffert

Zwei-Kanal-Speicherarchitektur, AMD EXPO Technology

HD Audio (8-Kanal)

High-Definition-Audio

2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2

1 x CPU  4 x DIMM 288-polig  1 x PCIe 4.0 x16  2 x PCIe 4.0 x16 (1x-Modus)  2 x M.2 socket (2242/2260/2280 M.2 Slot mit Key M)

SATA-600 -anschlussstellen: 4 x 7-Pin Serial ATA - RAID 0 / RAID 1 / RAID 10  PCIe 5.0 -anschlussstellen: 1 x M.2 - RAID 0 / RAID 1 / RAID 10  PCIe 4.0 -anschlussstellen: 1 x M.2 - RAID 0 / RAID 1 / RAID 10

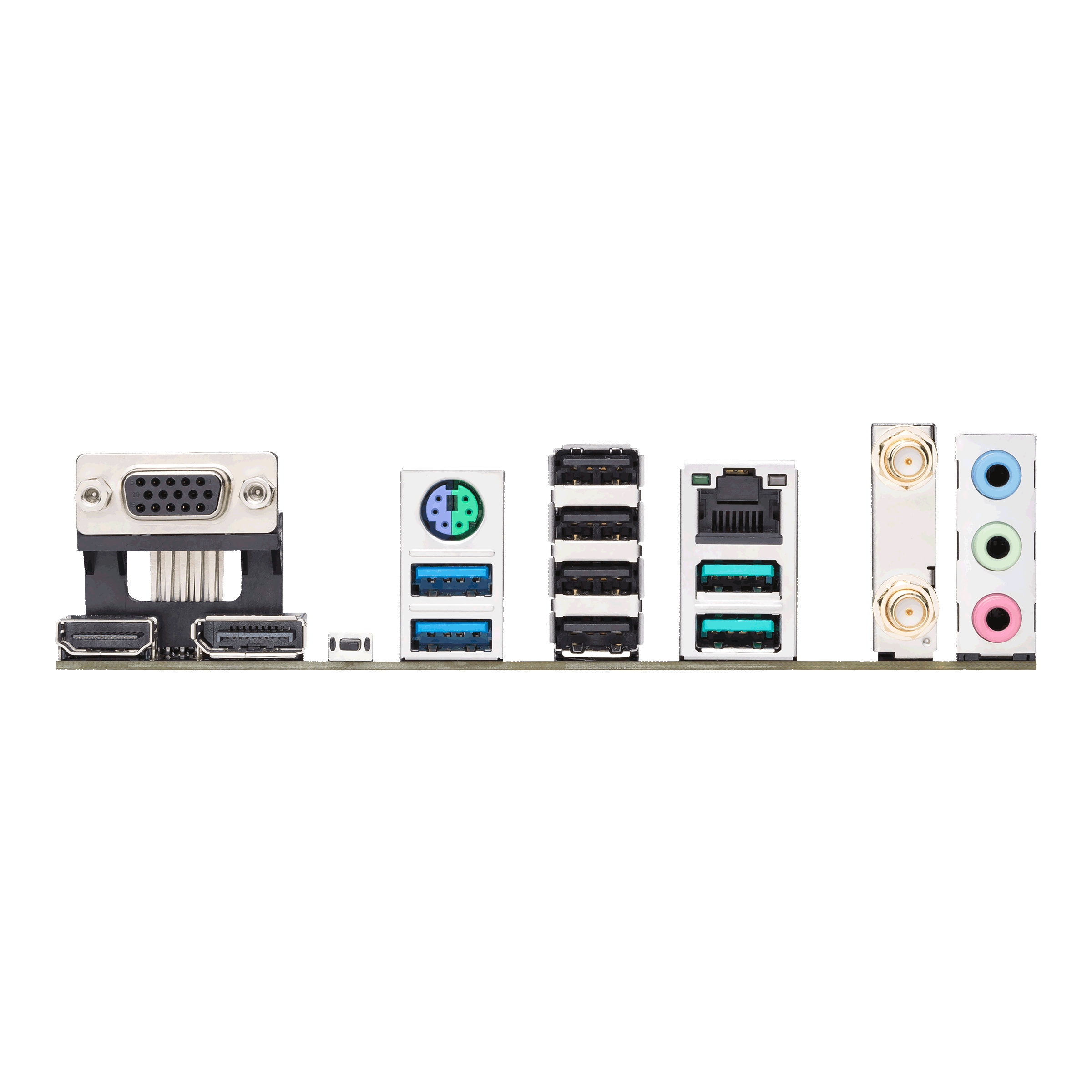

1 x HDMI  1 x DisplayPort  1 x VGA  2 x USB 3.2 Gen 2  2 x USB 3.2 Gen 1  4 x USB 2.0  1 x LAN (2.5Gigabit Ethernet)  1 x Audio Line-Out - Mini-Klinkenstecker  1 x Audio Line-In - Mini-Klinkenstecker  1 x Mikrofon - Mini-Klinkenstecker  2 x Antenne  1 x PS/2-Tastatur/-maus

1 x USB-C 3.2 Gen 1 - Stiftleiste  2 x USB 3.2 Gen 1 - Stiftleiste  4 x USB 2.0 - Stiftleiste  1 x Seriell - Stiftleiste  1 x Audio - Stiftleiste  1 x SPDIF-Ausgang - Stiftleiste  1 x Lautsprecher - Stiftleiste  1 x SPI - Stiftleiste

Hauptstromanschluss, 24-polig, ATX12V-Stecker, 8-polig

AMI

UEFI BIOS, ASUS EZ Flash 3

Wake-On-LAN (WOL), Wake On PME

Jack Retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, Audio Jack-Erkennungstechnologie, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, Überspannungsschutz, ASUS 5X Protection III, Water Pump Header, ASUS Aura Sync, ASUS OptiMem II, ASUS SafeSlot Core+, DIY Friendly Design, Q-LED Core, VRM Kühlkörperdesign, BIOS FlashBack-Taste, BIOS FlashBack LED

IO-Abschirmung, ASUS Wi-Fi bewegliche Antenne, M.2 Schraubenpaket

2 x Serial ATA-Kabel

ASUS CPU-Z, ASUS AI Suite III, PC Cleaner, Norton AntiVirus (Testversion), ASUS AURA Creator, MyAsus, Armoury Crate, ASUS Fan Xpert 2+

VCCI Class B ITE, JATE, WEEE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, UKCA, EU REACH

24.4 cm

24.4 cm
